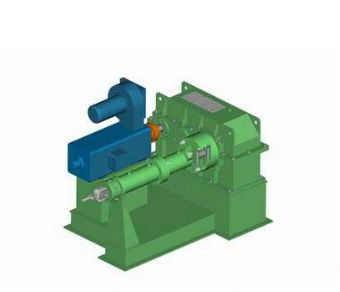

Cold Feed Extruder for Bead Line
Rigid welded structure steel made common bed for good strength and easier set-up.
| Feature: |
- Rigid welded structure steel made common bed for good strength and easier set-up.
- Rigid welded gearbox with gear hardened and profile ground for efficient operation.
- With large feed opening and cooling feed roll to maximize output capacity.
- With Automatic temperature controlled thermo oil circulating system for barrels and head
- Appropriate head for bead line.
|
| Detail: |
|
Pin
Type Cold Feed Extruders
|
| Model |
CB75
|
CB90
|
| Screw
Diameter |
75
|
90
|
| Barrel
Length (L/D) |
12
|
12
|
| Max.
Screw Speed (RPM) |
75
|
65
|
| Motor
Power (KW) |
37
|
45
|
| Temp.Zones
No./Total KW |
4/25
|
4/25
|
| Extrusion
Capacity(Kg/hr) |
200-280
|
300-420
|
|
|
| |
