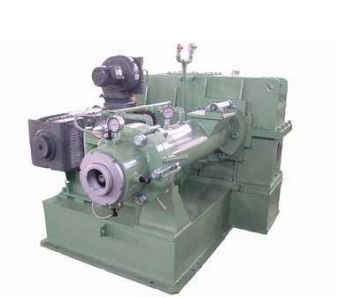

Hot Feed Tube Extruder
Rigid welded structure steel made common bed for good strength and easier set-up.
| Feature: |
- Rigid welded structure steel made common bed for good strength and easier set-up.
- Rigid welded gearbox with gear hardened and profile ground for efficient operation.
- With large feed opening and cooling feed roll to maximize output capacity.
|
| Detail: |
|
Hot Feed Tube Extruder
|
| Model |
HT120
|
HT150
|
HT200
|
HT250
|
| Screw
Diameter |
120
|
150
|
200
|
250
|
| Barrel
Length (L/D) |
6
|
6
|
6
|
6
|
| Max.
Screw Speed (RPM) |
80
|
70
|
55
|
40.5
|
| Motor
Power (KW) |
37
|
56
|
112
|
150
|
| Extrusion
Capacity(Kg/hr) |
400-600
|
600-750
|
1300-1800
|
2000-2800
|
|
| |
|
