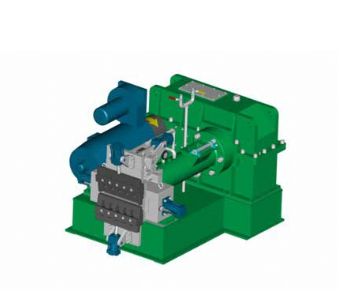

Hot Feed Extruders
Rigid welded structure steel made common bed for good strength and easier set-up.
| Feature: |
- Rigid welded structure steel made common bed for good strength and easier set-up.
- Rigid welded gearbox with gear hardened and profile ground for efficient operation
- With large feed opening and undercut barrel to maximize output capacity.
- Short flow channels with hydraulic operated operation for easier cleaning.
|
| Detail: |
|
Hot Feed Extruders
|
| Model |
HF75
|
HF90
|
HF120
|
HF150
|
HF200
|
HF250
|
| Screw
Diameter |
75
|
90
|
120
|
150
|
200
|
250
|
| Barrel
Length (L/D) |
6
|
6
|
6
|
6
|
6
|
6
|
| Max.
Screw Speed (RPM) |
100
|
90
|
80
|
70
|
55
|
40.5
|
| Motor
Power (KW) |
30
|
37
|
37
|
56
|
112
|
150
|
| Extrusion
Capacity(Kg/hr) |
220-230
|
300-400
|
450-700
|
650-800
|
1500-2000
|
2200-3000
|
|
|
| |
