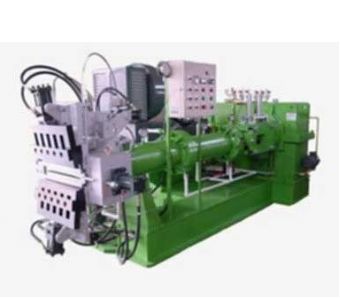

Cold Feed Extruders
Rigid welded structure steel made common bed for good strength and easier set-up.
| Feature: |
- Rigid welded structure steel made common bed for good strength and easier set-up.
- Rigid welded gearbox with gear hardened and profile ground for efficient operation.
- With large feed opening and cooling feed roll to maximize output capacity.
- With Automatic temperature controlled water circulating system for barrels and head
- Short flow channels with hydraulic operated operation for easier cleaning.
|
| Detail: |
|
Cold Feed Extruders
|
| Model |
CF75
|
CF90
|
CF120
|
CF150
|
CF200
|
| Screw
Diameter |
75
|
90
|
120
|
150
|
200
|
| Barrel
Length (L/D) |
12
|
12
|
14
|
16
|
18
|
| Max.
Screw Speed (RPM) |
75
|
65
|
55
|
44
|
32
|
| Motor
Power (KW) |
37
|
56
|
93
|
186
|
261
|
| Temp.Zones
No./Total KW |
3/19
|
4/25
|
4/25
|
5/48
|
5/78
|
| Extrusion
Capacity(Kg/hr) |
200-280
|
300-420
|
450-700
|
1000-1300
|
1600-1900
|
|
|
| |
