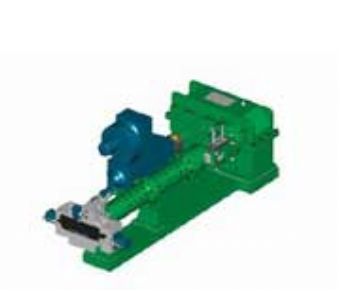

Pin Type Cold Feed Extruders
Rigid welded structure steel made common bed for good strength and easier set-up.
| Feature: |
- Rigid welded structure steel made common bed for good strength and easier set-up.
- Rigid welded gearbox with gear hardened and profile ground for efficient operation.
- With large feed opening and cooling feed roll to maximize output capacity.
- With Automatic temperature controlled water circulating system for barrels and head
- Short flow channels with hydraulic operated operation for easier cleaning.
|
| Detail: |
|
Pin
Type Cold Feed Extruders
|
| Model |
CP90
|
CP120
|
CP150
|
CP200
|
CP250
|
| Screw
Diameter |
90
|
120
|
150
|
200
|
250
|
| Barrel
Length (L/D) |
12
|
14
|
16
|
18
|
18
|
| Max.
Screw Speed (RPM) |
65
|
55
|
44
|
32
|
25
|
| Pins/Plane
X Planes |
6
x8
|
6
x 8
|
8
x 10
|
8
x 10
|
10
x 10
|
| Motor
Power (KW) |
56
|
112
|
186
|
300
|
522
|
| Temp.Zones
No./Total KW |
4/25
|
4/25
|
5/48
|
5/78
|
5/78
|
| Extrusion
Capacity(Kg/hr) |
400-600
|
600-1000
|
1300-1900
|
2000-3000
|
3000-4000
|
|
|
| |
